JenoptikのSLM-S液晶空間光変調器を使用した超短波レーザパルスの変調
Jenoptik SLM-S液晶光変調器で、空間位相および/またはビームの振幅の変調を最適化。

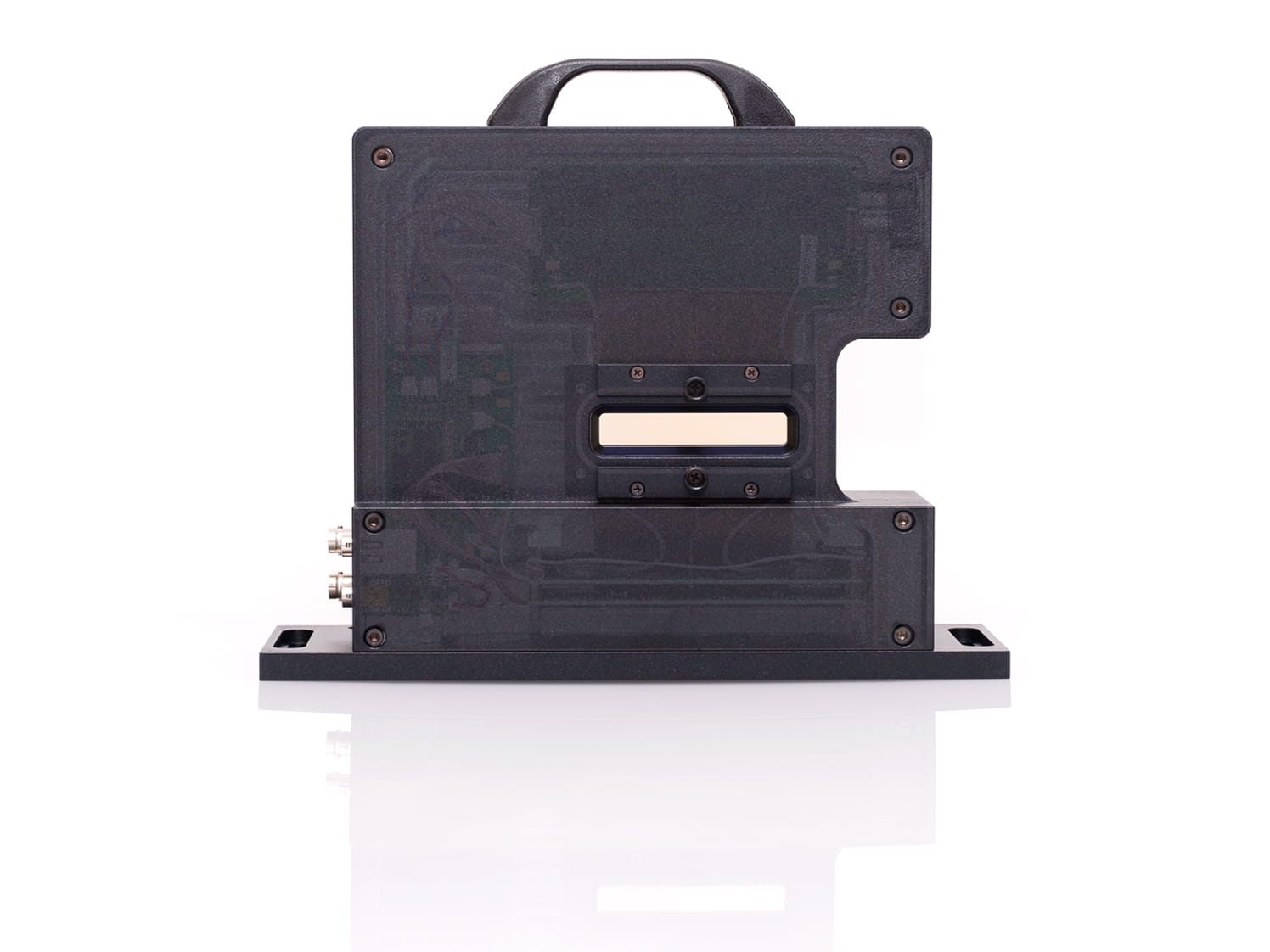

Jenoptik SLM-S液晶空間光変調器は可変位相/振幅マスクで、超短波のレーザパルスを調整する優れたツールです。一例として、4fアレンジメントあるいはCPAシステム(チャープパルス増幅)や連続波レーザ光調整にご活用いただけます。
Jenoptikは、位相または振幅変調のためのシングルマスクアレイ、および位相と振幅の同時変調のためのデュアルマスクアレイを備えた液晶空間光変調器を提示します。変調器は640あるいは320ストリップの解像度が利用可能です。ストリップの各々を、解像度12ビットで個別に制御することができます。これは、ストリップパターンを自由に構成できることを意味します。
液晶光変調器は、ネマチック液晶層(LC層)の光学的性質の電気制御の原理に基づきます。作動する光の波長範囲は430から1600ナノメーターまでです。お客様のご要望にあわせて、私たちは、様々なスペクトル域用ARコーティングの製造を行っています。
SLMが持つ利点
- 効率性:位相と振幅の同時変調が可能に
- 強力:VIS および NIR スペクトル範囲
- 多用途性:シングルまたはデュアルマスクとご使用いただけます
- カスタム設計:お客様のアプリケーションにあわせたARコーティング
- 可変性:取り付け簡単なミラーつき反射構成向け
応用分野
- レーザおよび素材加工:高出力および極短パルスレーザーのパルス整形
- 化学:コヒーレント制御
- 分析:多次元顕微鏡検査および分光学
- レーザー技術:パルス圧縮
- 光学:VISおよびNIR範囲のレーザー光の調整を行う手軽なソリューション
- フォトニクス:超高速プロセスの研究および実装を進める際に、可変位相/振幅マスクをfsレーザパルス整形に利用

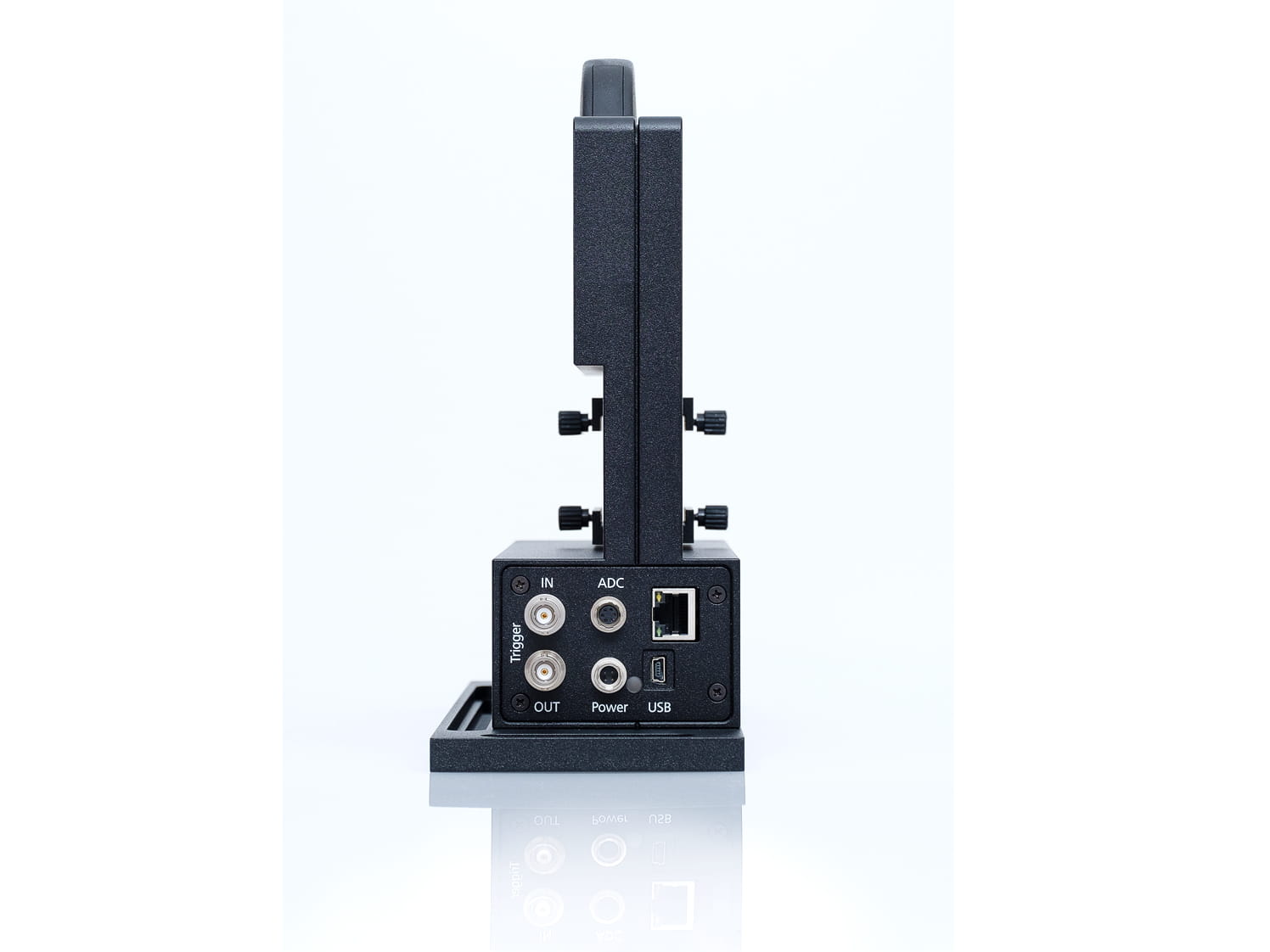

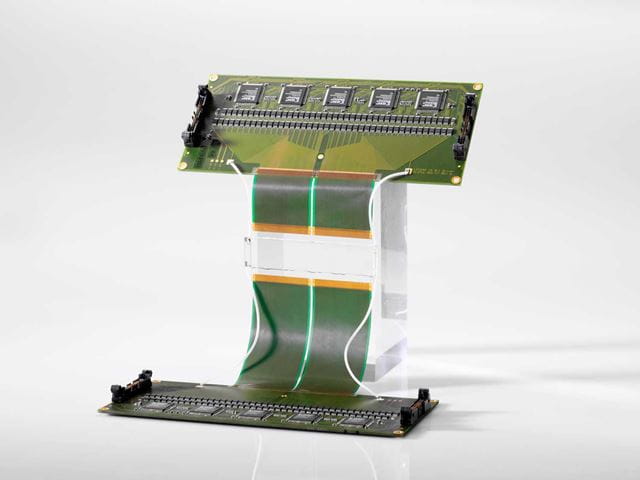

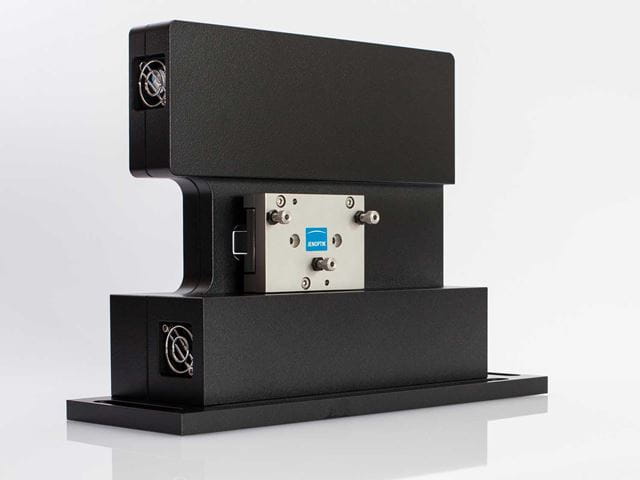

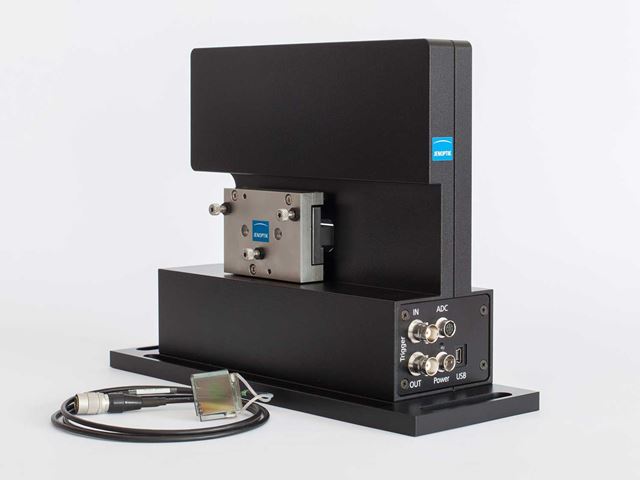

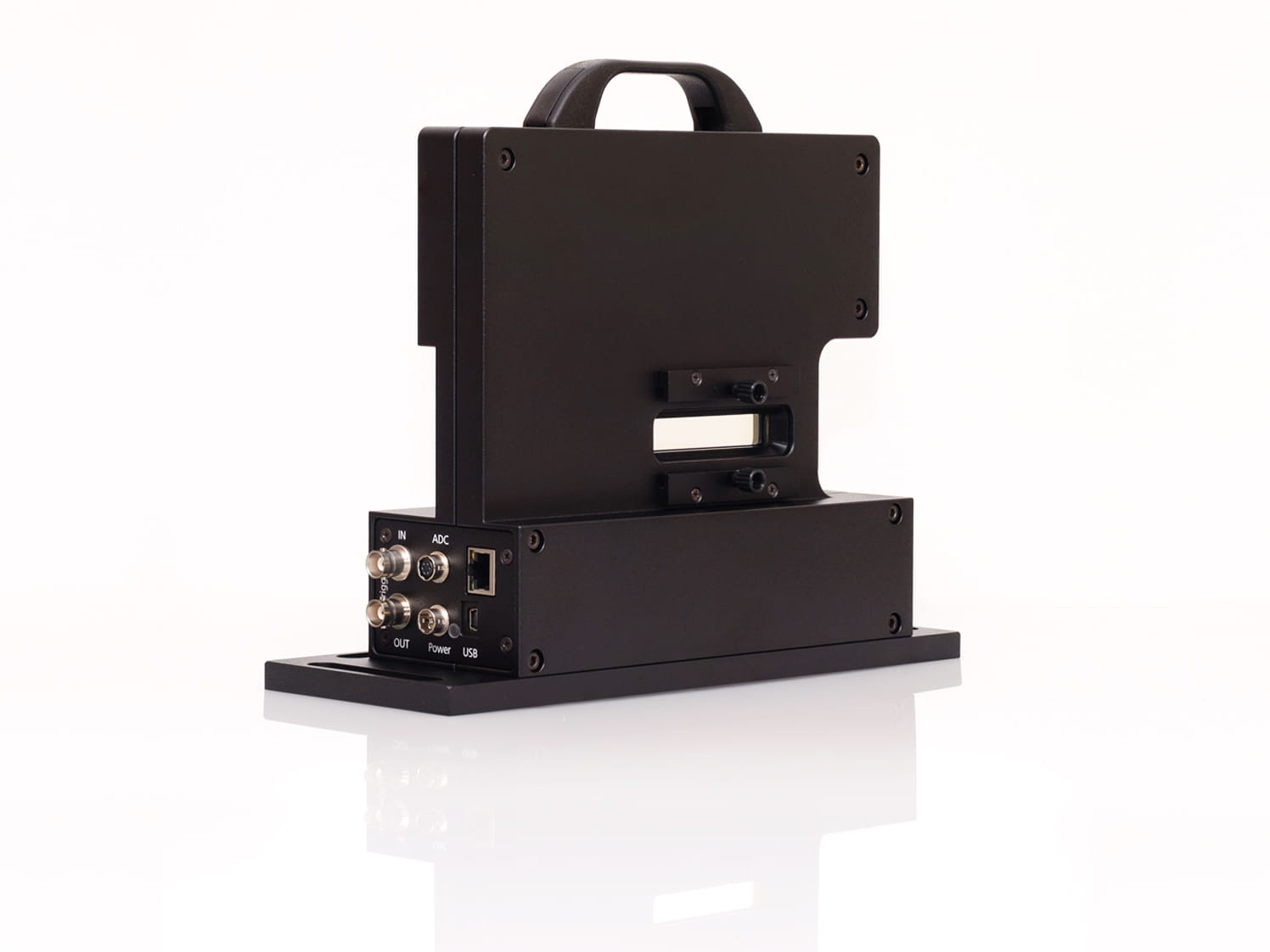

製品プレビュー 液晶空間光変調器
液晶空間光変調器 用途例

高出力フェムト秒アプリケーション向け超高性能パルス整形Jenoptik SLM
Jenoptik-SLM が学術機関で高出力フェムト秒アプリケーション向け超高性能パルス整形の中心機器としてで使用されています。
イェーナのフリードリヒ=シラー大学のアッビセンターのフォトニクス研究者が、適応性のあるフェムト秒パルス整形の新しいセットアップを実証しました。このセットアップ機器の中心には、Jenoptik-SLMが使用されています。
これは、最適化された高性能機器内での Jenoptik-SLM の大きな可能性が全面的に明らかになった最初の例です。ピコ秒の時間ウィンドウで20fsグラディエントの非常に効率的な自己学習パルス整形が実証されました。これは、SLMのすべてのエリアが初めて使用された例であり、どの波長域でもビーム品質の減衰はありありませんでした。このアプローチを使用することで、60%をはるかに超えるシステム効率で多重ギガワット・ピーク電力パルスを生成できます。
SLM-S - 出版物一覧
Jenoptikの空間光変調器SLM-S320(d)/640(d)に関連したテクニカルペーパーおよびアプリケーションペーパー
2017
Ultrashort polarization-tailored bichromatic fields
Stefanie Kerbstadt, Lars Englert, Tim Bayer and Matthias Wollenhaupt
Journal of Modern Optics, Volume 64 (2017)
2016
Ultrashort pulses characterization by quantum state tomography
Stefan Lerch and Andre Stefanov
Optical Express 30088, Vol. 24, No. 26 (2016)
Bipartite Bell inequalities with three ternary-outcome measurements — from theory to experiments
Sacha Schwarz, Bänz Bessire, Andre Stefanov, and Yeong-Cherng Liang
Quantum Physics arXiv:1511.05253v2, 11 Mar 2016; Journalreference: New Journal of Physics 18 (2016) 035001, DOI: 10.1088/1367-2630/18/3/035001
Dye-assisted visualization of plasmon modes excited in single gold nanoplates
K. Imaeda, and K. Imura,
Chemical Physics Letters, Volume 646, 2016, pages 179-184
Coherent control in room-temperature quantum dot semiconductor optical amplifiers using shaped pulses
O. Karni, A.K. Mishra, G. Eisenstein, V. Ivanov, and J.P. Reitmeyer
Optica, Vol. 3, No. 6, 2016, page 570-576
2015
Terahertz waveform generation for S21-parameter measurements using a fiber-coupled optical pulse shaper
Jan-Martin Rämer, and Georg von Freymann
OPTICS EXPRESS 30872, 2015 OSA 30 Nov 2015, Vol. 23, No. 24, DOI:10.1364/OE.23.030872
Shaped and Feedback-Controlled Excitation of Single Molecules in the Weak-Field Limit
Alexander Weigel, Aleksandar Sebesta, and Philipp Kukura
J. Phys. Chem. Lett., 2015, 6 (20), pp 4032–4037, DOI: 10.1021/acs.jpclett.5b01748, September 17, 2015
Realizing up-conversion fluorescence tuning in lanthanide-doped nanocrystals by femtosecond pulse shaping method
Shian Zhang, Yunhua Yao, Xu Shuwu, Pei Liu, Jingxin Ding,Tianqing Jia, Jianrong Qiu & Zhenrong Sun
Www.nature.com / Scientific Reports 5, Article number: 13337, (2015, August 20), DOI:10.1038/srep13337
Hydrogen Migration in Intense Laser Fields: Analysis and Control in Concert
N. Reusch, N. Schirmel, and K.M. Weitzel
Progress in Ultrafast Intense Laser Science XI, 2015, Springer, ISBN: 978-3-319-06730-8
Single-beam spectrally controlled two-dimensional Raman spectroscopy
H. Frostig, T. Bayer, N. Dudovich, Y.C. Eldar, and Y. Silberberg
Nature Photonics 9, 339-343, 2015
Controlling ablation mechanisms in sapphire by tuning the temporal shape of femtosecond laser pulses
J. Hernandez-Rueda, J. Siegel, M. Galvan-Sosa, A. Ruiz de la Cruz, M. Garcia-Lechuga, and J. Solis
J. Opt. Soc. Am. B, Vol. 32, No. 1, 2015, pp150-156
2014
Shaping and spatiotemporal characterization of sub-10-fs pulses focused by a high-NA objective
Monika Pawłowska, Sebastian Goetz, Christian Dreher, Matthias Wurdack, Enno Krauss, Gary Razinskas, Peter Geisler, Bert Hecht and Tobias Brixner
Optics Express, Vol. 22, Issue 25, pp. 31496-31510 (2014)
Single and two-photon fluorescence control of Er3+ ions by phase-shaped femtosecond laser pulse
Shian Zhang, Shuwu Xu, Jingxin Ding, Chenhui Lu, Tianqing Jia, Jianrong Qiu, and Zhenrong Sun
Applied Physics Letters 104, 014101 (2014)
Optimized terahertz generation via optical rectification in ZnTe crystals
S. Vidal, J. Degert, M. Tondusson, E. Freysz, and J. Oberlé
Journal of the Optical Society of America B Vol. 31, 149-153, No. 1 (2014)
Optimization of ultra-fast interactions using laser pulse temporal shaping controlled by a deterministic algorithm
M. Galvan-Sosa, J. Portilla, J. Hernandez-Rueda, J. Siegel, L. Moreno, A. Ruiz de la Cruz, and J. Solis
Applied Physics A, 2014, volume 114, Issue 2, pp 477-484
Multiple One-Dimensional Search (MODS) algorithm for fast optimization of laser–matter interaction by phase-only fs-laser pulse shaping
M. Galvan-Sosa, J. Portilla, J. Hernandez-Rueda, J. Siegel, L. Moreno, and J. Solis
Applied Physics B, Laser and Optics, 2014, Vol. 116, Issue 3, pp 747-553
2013
Long-term stabilization of high power optical parametric chirped-pulse amplifiers
R. Riedel, M. Schulz, M. J. Prandolini, A. Hage, H. Höppner, T. Gottschall, J. Limpert, M. Drescher,
F. Tavella
Optics Express, Vol. 21, Issue 23, pp. 28987-28999 (2013)
Surface structuring of fused silica with asymmetric femtosecond laser pulse bursts
J. Hernandez-Rueda, J. Siegel, M. Galvan-Sosa, A. Ruiz de la Cruz, J. Solis,
Journal of the Optical Society of America B 30, 1352-1356 (2013)
Ad-hoc design of temporally shaped fs laser pulses based on plasma dynamics for deep ablation in fused silica
J. Hernandez-Rueda; J. Siegel, D. Puerto; M. Galvan-Sosa, W. Gawelda, J. Solis
Applied Physics A, Volume 112, Issue 1, pp.185-189 (2013)
Spectral flattening of supercontinua with a spatial light modulator
R. A. Probst, T. Steinmetz, T. Wilken, G. K. L. Wong, H. Hundertmark, S. P. Stark, P. St. J. Russell, T. W. Hänsch, R. Holzwarth, Th. Udem
Proc. SPIE 8864, Techniques and Instrumentation for Detection of Exoplanets VI, 88641Z (September 26, 2013); doi:10.1117/12.2036601
Shaping frequency entangled qudits
C. Bernhard, B. Bessire, T. Feurer, A. Stefanov
arXiv:1303.6202 (quant-ph), 27 Mar 2013
Formation of fragment ions (H+, H 3+, CH 3+) from ethane in intense femtosecond laser fields–from understanding to control
N. Schirmel, N. Reusch, P. Horsch, and K.M. Weitzel
Faraday discussions, 2013; 163: 461-74
2012
75 MW few-cycle mid-infrared pulses from a collinear apodized APPLN-based OPCPA
C. Heese, C. R. Phillips, B. W. Mayer, L. Gallmann, M. M. Fejer, and U. Keller
Optics Express, Vol. 20, No. 24, pp. 26888-26894 (2012)
Maximizing the amplitude of coherent phonons with shaped laser pulses
Toru Shimada, Christian Frischkorn, Martin Wolf, and Tobias Kampfrath
J. Appl. Phys. 112, 113103 (2012)
Real-time observation of transient electron density in water irradiated with tailored femtosecond laser pulses
C. Sarpe, J. Köhler, T. Winkler, M. Wollenhaupt and T. Baumert
New Journal of Physics 14 075021 (2012)
White-light generation using spatially-structured beams of femtosecond radiation
N. Kaya, J. Strohaber, A. A. Kolomenskii, G. Kaya, H. Schroeder, and H. A. Schuessler
Optics Express, Vol. 20, Issue 12, pp. 13337-13346 (2012)
Programmably structured plasma waveguide for development of table-top photon and particle sources
T.-S. Hung, Y.-C. Ho, Y.-L. Chang, S.-J. Wong, H.-H. Chu, J.-Y. Lin, J. Wang, and S.-Y. Chen
Physics of Plasmas 19, 063109 (2012)
2011
Coherent Control of the Ultrafast Dissociative Ionization Dynamics of Bromochloroalkanes
J. Plenge, A. Wirsing, I. Wagner-Drebenstedt, I. Halfpap, B. Kieling, B. Wassermann, E. Rühl
Phys. Chem. Chem. Phys. Vol. 13, 21 May 2011, Pages 8705-8714
Effect of Linear Chirp on Strong Field Photodissociation of H2+
V. S. Prabhudesai, A. Natan, B. D. Bruner, Y. Silberberg, U. Lev, O. Heber, D. Strasser, D. Schwalm, D. Zajfman, I. Ben-Itzhak
Journal of the Korean Physical Society, Vol. 59, 2890-2894 (2011)
High-power widely tunable sub-20fs Gaussian laser pulses for ultrafast nonlinear spectroscopy
Bernd Metzger, Andy Steinmann, and Harald Giessen
Optics Express, Vol. 19, Issue 24, pp. 24354-24360 (2011)
Single-pulse stimulated Raman scattering spectroscopy
Hadas Frostig, Ori Katz, Adi Natan, and Yaron Silberberg
Optics Letters, Vol. 36, No. 7, pp. 1248-1250 (2011)
Zeptosecond precision pulse shaping
Jens Köhler, Matthias Wollenhaupt, Tim Bayer, Cristian Sarpe, and Thomas Baumert
Optics Express, Vol. 19, Issue 12, pp. 11638-11653 (2011)
Nonlocal compensation of pure phase objects with entangled photons
Simone Cialdi, Davide Brivio, Enrico Tesio, Matteo G. A. Paris
Physical Review 2011, A 84, 043817
Combined OCT and CARS using a single ultrashort pulse Ti: Sapphire laser
C. Hoffmann, B. Hofer, A. Unterhuber, B. Poavzay, U. Morgner, and W. Drexler
SPIE Proceedings Vol. 78920B (10 February 2011) Multimodal Biomedical Imaging VI
Single-beam coherent anti-Stokes Raman scattering spectroscopy using both pump and soliton Stokes pulses from a photonic crystal fiber
K. Tada, N. Karasawa
Applied Physics Express 4, 092701, 2011
2010
Generation of intense ultrashort midinfrared pulses by laser-plasma interaction in the bubble regime
C.-H. Pai, Y.-Y. Chang, L.-C. Ha, Z.-H. Xie, M.-W. Lin, J.-M. Lin, Y.-M. Chen, G. Tsaur, H.-H. Chu, S.-H. Chen, J.-Y. Lin, J. Wang, and S.-Y. Chen
Physical Review A 82, 063804 (2010)
Coherent Control for Molecular Ultrafast Spectroscopy
T. Buckup, J. Hauer, M. Motzkus
in "Extreme Photonics and Applications"
NATO-Science for Peace and Security Series B - Physics and Biophysics, 37-55 (2010)
Strong-field spatiotemporal ultrafast coherent control in three-level atoms
Barry D. Brunner, Haim Suchowski, Nikolay V. Vitanov, Yaron Silberberg
Physical Review 2010, A 81, 063410
Mid-infrared polarization pulse shaping by parametric transfer
Marco Thomas Seidel, Suxia Yan, and Howe-Siang Tan
Optics Letters, Vol. 35, No. 4, February 15, 2010
Multi-terawatt laser system generating 12-fs pulses at 100 Hz repetition rate
Y. Nabekawa, A. Amani Eilanlou, Y. Furukawa, K.L. Ishikawa, H. Takahashi, K. Midorikawa
Appl Phys B (2010) Vol. 101, pp. 523–534
Vibrational cooling of cold molecules with optimised shaped pulses
D. Sofikitis, A. Fioretti, S. Weber, R. Horchani, M. Pichler, X. Li, M. Allegrini, B. Chatel, D. Comparat, and P. Pillet
Molecular Physics, Vol. 108, 2010 Issue 6, page 795-810
2009
Broadband coherent anti-Stokes Raman scattering spectroscopy using soliton pulse trains from a photonic crystal fiber
K. Tada, N. Karasawa
Optical Communications, Volume 9, Issue 19, 1 October 2009, Pages 3948-3952
Multi-terawatt chirped pulse optical parametric amplifier with a time-shear power amplification stage
Pawel Wnuk, Yuriy Stepaneko, Czeslaw Radzewicz
Optics Express, 2009, Vol. 17, Issue 17, pp. 1526415273
Molecular vibrational cooling by optical pumping with shaped femtosecond pulses
D. Sofikitis, S. Weber, A. Fioretti., R. Horchani, M. Allegrini, B. Chatel, D. Comparat and P. Pillet
New Journal of Physics 11
Photoelectron angular distributions from strong-field coherent electronic excitation
M. Wollenhaupt, M. Krug, J. Köhler, T. Bayer, C. Sarpe-Tudoran, T. Baumert
Appl Phys B (2009), Vol. 95, pp. 245–259
Cold cesium molecules: from formation to cooling
A. Fioretti, D. Sofikitis, R. Horchani, X. Li, M. Pichler, S. Weber, M. Allegrini, B. Chatel, D. Comparat, and P. Pillet
Journal of Modern Optics, 2009, Vol. 56, Issue 18-19, page 2089-2099
2008
Amplitude and phase modulation of time-energy entangled two-photon states
Zäh F, Halder M, Feurer T.
Optics Express, 2008 Oct 13, Vol. 16, Issue 21, pp 16452-16458
Few-cycle femtosecond field synthesizer
Stefan Rausch, Thomas Binhammer, Anne Harth; Franz X. Kärtner, Uwe Morgner
Optics Express, 2008, Vol. 16, Issue 22, pp. 17410-17419
Spatio-temporal coherent control of atomic systems: weak to strong field transition and breaking of symmetry in 2D maps
H. Suchowski, A. Natan, B. D. Bruner and Y. Silberberg
Physics of Complex Systems, The Weizmann Institute of Science, Rehovot, Israel
J. Phys. B: At. Mol. Opt. Phys. 41
Direct amplification of a terrawatt sub-10-fs pulse using a CPA system of Ti:sapphire laser
A. Amani Eilanlou, Y. Nabekawa, K. L. Ishikawa, H. Takahashi, and K. Midorikawa
Optics Express, Vol. 16, Issue 17, pp. 13431-13438
Standoff detection of trace amounts of solids by nonlinear Raman spectroscopy using shaped femtosecond pulses
O. Katz , A. Natan, Y. Silberberg, and S. Rosenwaks
Applied Physics Letters 92, 171116 _2008
Broadband Coherent Anti-Stokes Raman Scattering Spectroscopy Using
Pulse-Shaper-Controlled Variable-Wavelength Soliton Pulses from a Photonic Crystal Fiber
Kazuhiro Tada, Naoki Karasawa
Jpn. J. Appl. Phys. 47 (2008) pp. 8825-8828
2007
Enhancement of Relativistic Harmonic Generation by an Optically Preformed Periodic Plasma Waveguide
C.-C. Kuo, C.-H. Pai, M.-W. Lin, K.-H. Lee, J.-Y. Lin, J. Wang, and S.-Y. Chen
Physical Revue Letters 98, 033901 (2007)
Programmable common-path vector field synthesizer for femtosecond pulses
M. Ninck, A. Galler, T. Feurer, and T. Brixner
Optics Letters, 2007, Vol. 32, Issue 23, pp. 3379-3381
Coherent control and dark pulses in second harmonic generation
Paweł Wnuk *, Czesław Radzewicz
Optics Communications 272 (2007) 496–502
Distinction of ortho- and para-Xylene by Femtosecond-Laser Mass Spectrometry
Gunter Urbasch, Hans Georg Breunig and Karl-Michael Weitzel
ChemPhysChem 2007, 8, 2185 – 2188
2006
Fabrication of plasma transient density structures and its application to high-field plasma devices
Szu-yuan Chen, Jyhpyng Wang, and Jiunn-Yuan Lin
AIP Conf. Proc. 877 (2006) pp. 117-128
A source of 2 terawatt, 2.7 cycle laser pulses based on noncollinear optical parametric chirped pulse amplification
Witte, S.; Zinkstok, R. Th.; Wolf, A. L.; Hogervorst, W.; Ubachs, W.; Eikema, K. S. E.
Optics Express, 2006, Vol. 14, Issue 18, pp.8168-8177
Programmable fabrication of spatial structures in a gas jet by laser machining with a spatial light modulator
Lin, M.-W.; Chen, Y.-M.; Pai, C.-H.; Kuo, C.-C.; Lee, K.-H.; Wang, J.; Chen, S.-Y.; Lin, J.-Y.
Physics of Plasmas, Volume 13, Issue 11, pp. 110701-110704
Generation of optical-field controlled high-intensity laser pulses
Masayuki Kakehata, Hideyuki Takada, Yohei Kobayashi, Kenji Torizuka
Journal of Photochemistry and Photobiology A: Chemistry 182 (2006) pp. 220-224
2005
High-power parametric amplification of 11.8-fs laser pulses with carrier-envelope phase control
R. Th. Zinkstok, S. Witte, W. Hogervorst, and K. S. E. Eikema
Optics Letters, 2005, Vol. 30, No. 1, pp. 78-80
Generation of few-cycle terawatt light pulses using optical parametric chirped pulse amplification
S. Witte, R. Th. Zinkstok, W. Hogervorst, K.S.E. Eikema
Optics Express, 2005, Vol. 13, No. 13 / pp. 4903-4908
Adaptive shaping of high-power broadband femtosecond laser pulses
Tobias Witting, Grigorios Tsilimis, Jörg Kutzner, and Helmut Zacharias
Springer Proceedings in Physics, Volume 102, 2005, pp. 273-282
Chirped-pulse amplification system providing electric-field-controlled optical pulses
M. Kakehata, H. Takada, Y. Kobayashi, K. Torizuka, K. Nishijima, H. Takamiya, T. Homma, and H. Takahashi
Conference on Lasers and Electro-Optics 2005, ISBN: 1-55752-770-9
2004
Control of the production of highly charged ions in femtosecond-laser cluster fragmentation
S. Zamith, T. Martchenko, Y. Ni, S. A. Aseyev, H. G. Muller, and M. J. J. Vrakking
Physical Review A 70, 011201(R) (2004)
A laser pulse shaper for the low-emittance radiofrequency SPARC electron gun
S. Cialdi*, I. Boscolo
Nuclear Instruments and Methods in Physics Research A 526 (2004) 239–248
New phase and amplitude high resolution pulse shaper
Antoine Monmayrant and Béatrice Chatel
Review of Scientific Instruments, Vol. 75, No 8, August 2004
2003
Generation of 3.8-fs pulses from adaptive compression of a cascaded hollow fiber supercontinuum
B. Schenkel, J. Biegert, and U. Keller, C. Vozzi, M. Nisoli, G. Sansone, S. Stagira, S. De Silvestri, and O. Svelto
Optics Letters, October 15, 2003 / Vol. 28, No. 20
2001
A new high-resolution femtosecond pulse shaper
G. Stobrawa, M. Hacker, T. Feurer, D. Zeidler, M. Motzkus, Frank Reichel (Jenoptik)
Appl. Phys. B 72, 627
ダウンロード
ご不明な点はございませんか?私たちのエキスパートが喜んでご回答いたします。
Sales Liquid Crystal Light Modulators
+49 3641 65-4243
+49 3641 65-3807
Sales Business Unit Healthcare and Industry
+1.561.881.7400
+81 045-345-0003
+81 045-345-0013
