JENOPTIK GRYPHAX® シリーズ:効率的な顕微鏡ワークステーション

Jenoptik(イエナオプティック)GRYPHAX® シリーズは、最新鋭のUSB3.0顕微鏡カメラと、直観的な顕微鏡カメラ用ソフトウエアをご提供します。

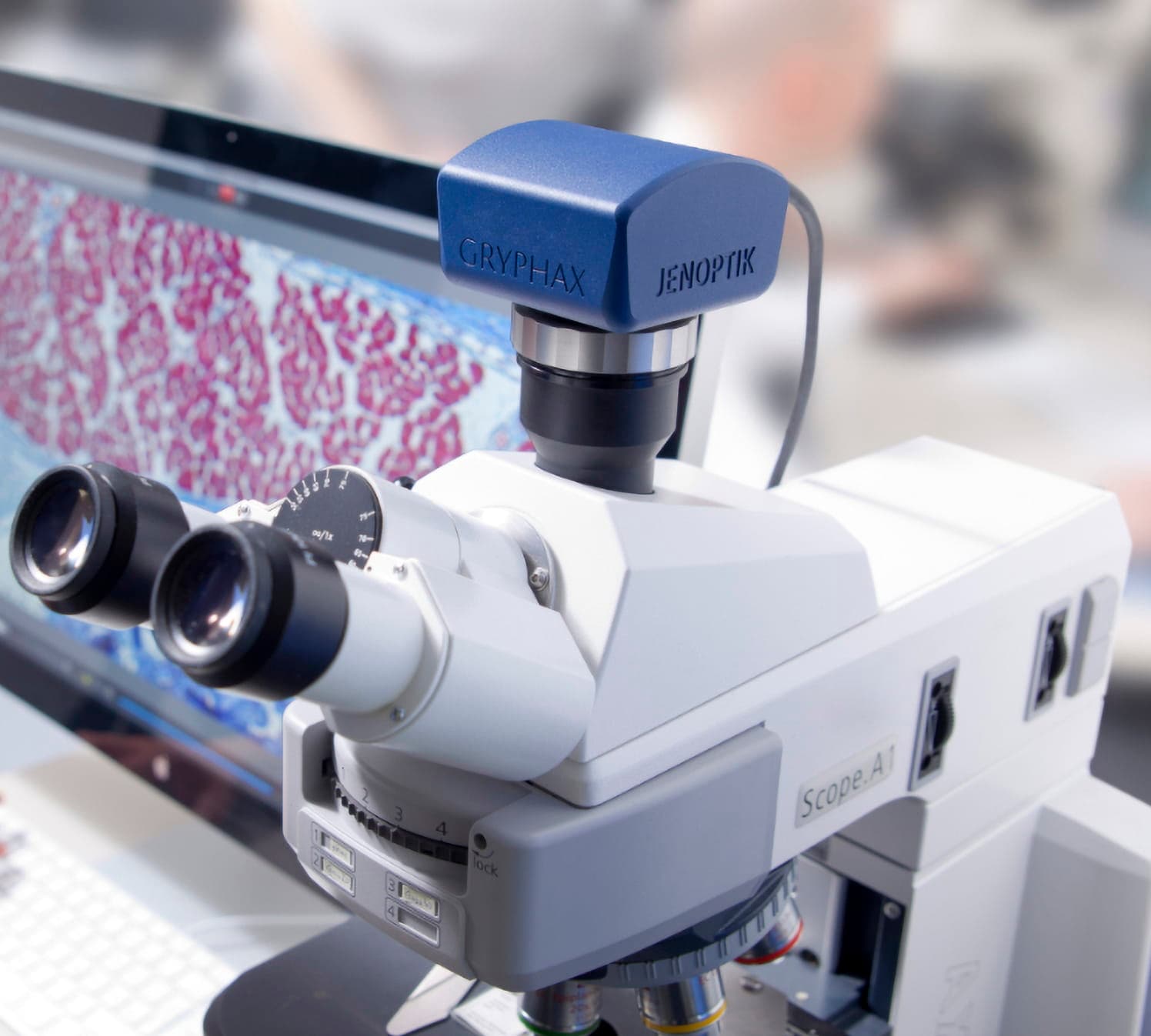

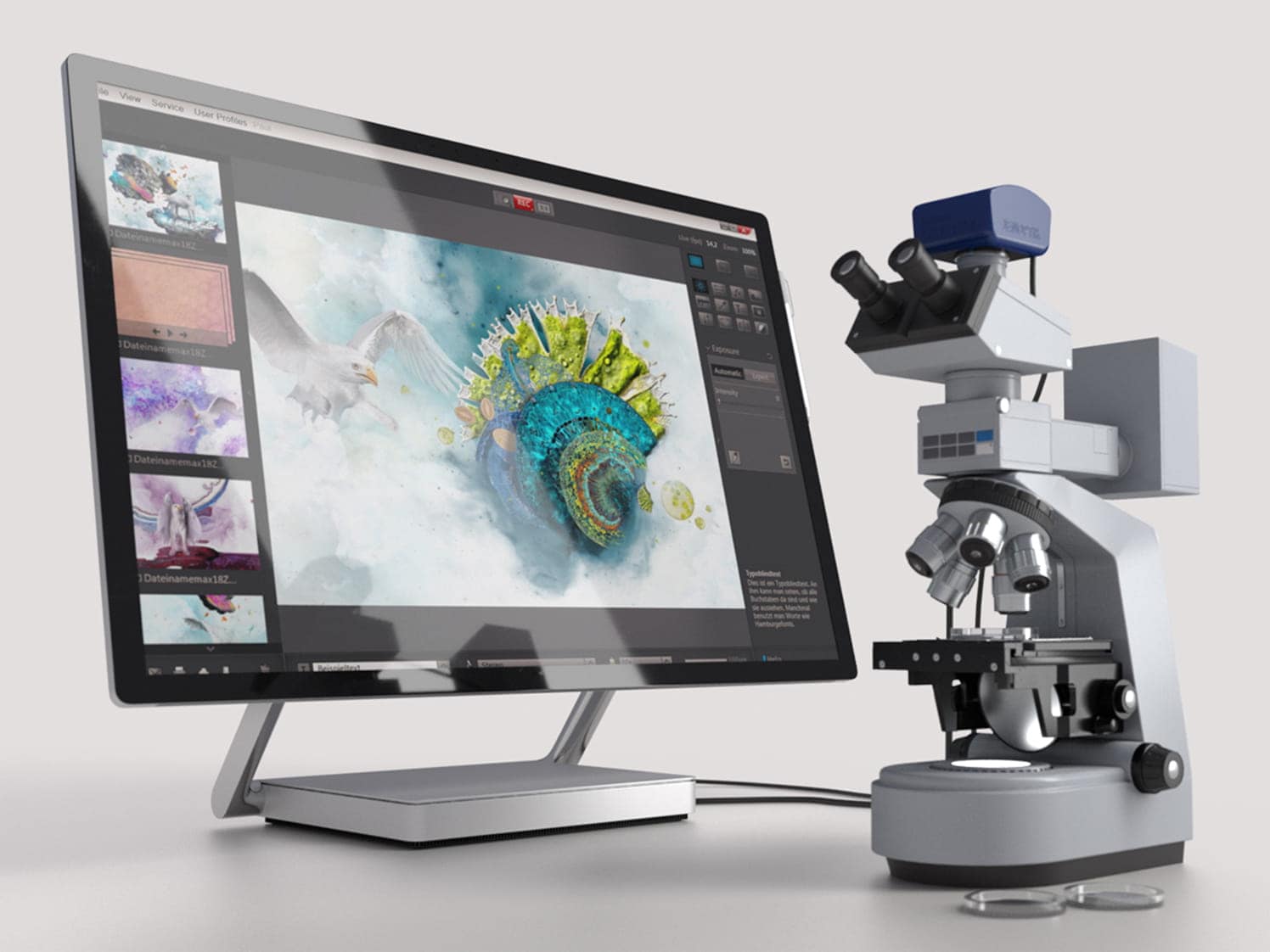

JENOPTIK GRYPHAX  - ワークステーション

Jenoptik(イエナオプティック)GRYPHAX®シリーズなら、現在の顕微鏡が最新鋭のデジタルワークステーションに変貌します。時間を節約!

JENOPTIK GRYPHAX® 顕微鏡カメラソフトウエアは、各カメラの一部として納品されます。使いやすく、直観的な操作で、予備的知識もいらないソフトウエアです。WINMAC あるいは Linux OS にインストールすることができます。すべてのカメラは、ビデオ速度のライブ映像に対応。あなたの毎日の作業を強力に促進してくれます。

実績が証明された Jenoptik(イエナオプティック)の高画質と最新鋭 CMOSテクノロジーの融合

Jenoptik(イエナオプティック)はGRYPHAX® シリーズ顕微鏡カメラに、最新のCMOSテクノロジーを利用しています。露光時間が短く、画像リフレッシュレートが高く、システムで時間を節約でき、使いやすさを提供します。これは対象が移動していても、すばやく手軽な位置決めと焦点合わせができることを意味します。

JENOPTIK GRYPHAX®製品は、どんな顕微鏡ともあわせても簡単にお使いいただけます - C-マウント・インターフェースは、すべてのブランドの顕微鏡に対応します。WINMAC あるいは Linuxで、どの OS でも常に同じユーザー・インターフェースをご利用いただけます。

付属の無料でアップデートできるJENOPTIKGRYPHAX®ソフトウエアは高い柔軟性を実現。常に最新のアップデートを提供します。

顕微鏡カメラの柔軟性やアプリケーション範囲を高めたいときは?私たちのDijSDKにぜひご依頼ください。最短時間でJENOPTIKGRYPHAX®カメラ・ポートフォリオを埋め込めるようお手伝いいたします

JENOPTIK GRYPHAX® - Back illuminated color cameras

PROKYON

Your superior solution for Life & Medical, Material & Manufacturing and fluorescence application.
Display your moving samples with up to 120 frames per second. Capture your samples in real measured color with up to 21 MPix resolution.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the PROKYON delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX PROKYON is the successor of all ProgRes microscanning cameras, like C14plus.

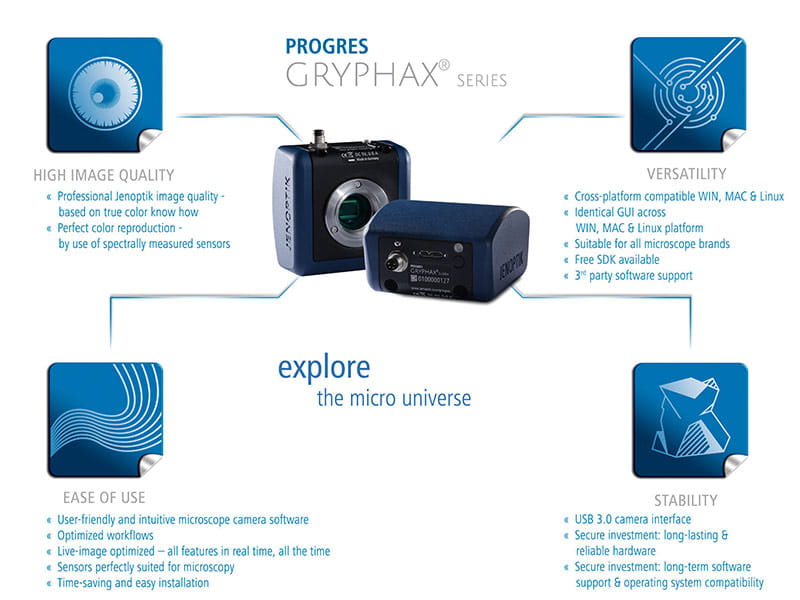

Benefits

  • High image quality: With 2 | 9 | 21 MPix, Pixel size 5.86 x 5.86µm, Real measured color, Dynamic range 73 dB, Cooling.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain, DirectX and 3rd party device support for PRIOR stages.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1/1.2" Sony back-illuminated sensor, 120 fps at full HD, Global shutter.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚫⚪ Sensitivity
    ⚫⚫⚫⚫ Frame Rate
    ⚫⚫⚫⚫ Resolution

  • Recommended Applications
    ⚫⚫⚫⚫ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚫⚫ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚫⚫⚫⚫ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚪ DF
    ⚫⚫⚪⚪ DIC
    ⚫⚫⚫⚪ Ph
    ⚫⚫⚫⚫ Pol

製品情報

NAOS

Your exclusive solution for Life & Medical, Material & Manufacturing application.
Display your specimens with up to 30 frames per second at 5 MPix. Capture your specimens with up to 20 MPix resolution.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the NAOS delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX NAOS replaces all ProgRes 5 MPix CCD cameras like, SpeedXTcore5.

Benefits

  • High image quality: With 2 | 5 | 20 MPix, aspect ratio 3:2, Reliable colors based on real measured color, Dynamic range 72 dB.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1" Sony back-illuminated sensor, 30 fps at 5 MPix.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚫ Sensor Size
    ⚫⚫⚪⚪ Sensitivity
    ⚫⚫⚫⚪ Frame Rate
    ⚫⚫⚫⚫ Resolution

  • Recommended Applications
    ⚫⚫⚫⚫ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚫⚫ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚪⚪⚪⚪ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚪⚪ DF
    ⚫⚪⚪⚪ DIC
    ⚫⚫⚪⚪ Ph
    ⚫⚫⚫⚪ Pol

製品情報

ARKTUR

Your recomended solution Life & Medical Science, Material & Manufacturing application.
Display 30 frames per second at 4k resolution and the largest possible field of view at the monitor.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the ARKTUR delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX ARKTUR replaces all ProgRes 3 MPix CCD cameras like, SpeedXTcore3.

Benefits

  • High image quality: With 2 | 4 | 8 Mpix, 4k, Reliable colors based on real measured color.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 2/3" Sony back-illuminated sensor, 30 fps at 4k (8 MPix).
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚪⚪ Sensitivity
    ⚫⚫⚫⚪ Frame Rate
    ⚫⚫⚫⚪ Resolution

  • Recommended Applications
    ⚫⚫⚫⚪ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚫⚪ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚪⚪⚪⚪ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚪⚪ DF
    ⚫⚪⚪⚪ DIC
    ⚫⚫⚪⚪ Ph
    ⚫⚫⚫⚪ Pol

製品情報

KAPELLA

Your exclusive solution for live cell and fluorescence application.
Display and capture your moving specimens with up to 120 frames per second.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the KAPELLA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX KAPELLA replaces all cooled ProgRes 1.4 MPix CCD color cameras, like ProgRes CFcool.

Benefits

  • High image quality: With Pixel size 5.86 x 5.86 µm, Reliable colors based on real measured color, Dynamic range 73.3 dB, Cooling.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1/1.2" Sony back-illuminated sensor, 120 fps at full HD, Global shutter.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚫⚪ Sensitivity
    ⚫⚫⚫⚫ Frame Rate
    ⚫⚪⚪⚪ Resolution

  • Recommended Applications
    ⚫⚫⚪⚪ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚪⚪ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚫⚫⚫⚫ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚪ DF
    ⚫⚫⚪⚪ DIC
    ⚫⚫⚫⚪ Ph
    ⚫⚫⚫⚫ Pol

製品情報

SUBRA

Your recomended solution for live cell and fluorescence application.
Display and capture your moving specimens with up to 30 frames per second.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the SUBRA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX SUBRA replaces all ProgRes 1.4 MPix CCD color cameras, like ProgRes CF.

Benefits

  • High image quality: With Pixel size 5.86 x 5.86 µm, Reliable colors based on real measured color, Dynamic range 67 dB.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1/1.2" Sony back-illuminated sensor, Global shutter.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚫⚪ Sensitivity
    ⚫⚫⚫⚪ Frame Rate
    ⚫⚪⚪⚪ Resolution

  • Recommended Applications
    ⚫⚫⚪⚪ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚪⚪ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚫⚫⚫⚪ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚪ DF
    ⚫⚫⚪⚪ DIC
    ⚫⚫⚫⚪ Ph
    ⚫⚫⚫⚫ Pol

製品情報

ALTAIR - Cost efficient with 3 & 12 MPix

AVIOR - Cost efficient with 2 & 8 MPix I 4K

Your superior solution for educations.
Basic solution Life & Medical Science, Material & Manufacturing. Display your samples at 4k resolution at the monitor.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the AVIOR delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX AVIOR is the successor of ProgRes CT3.

Benefits

  • High image quality: With 2 | 8 MPix, 4k, Reliable colors based on real measured color.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚪⚪⚪ Sensor Size
    ⚫⚪⚪⚪ Sensitivity
    ⚫⚫⚫⚪ Frame Rate
    ⚫⚫⚫⚪ Resolution

  • Recommended Applications
    ⚪⚪⚪⚪ Life & Medical Science
    ⚫⚫⚫⚪ Education Life & Medical Science
    ⚪⚪⚪⚪ Material & Manufacturing
    ⚫⚫⚫⚪ Education Material & Manufacturing
    ⚪⚪⚪⚪ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚪⚪⚪ DF
    ⚫⚪⚪⚪ DIC
    ⚫⚪⚪⚪ Ph
    ⚫⚪⚪⚪ Pol

Product-Information

JENOPTIK GRYPHAX® - Back illuminated monochrome cameras

POLARIS - The flagship | Monochrome

Your superior solution for fluorescence application.
Capture with the highest possible dynamic range and the most sensetive camera in the entiere portfolio.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the POLARIS delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

Benefits

  • High image quality: With a square, Pixel size 7.2 x 7.2 µm, Aspect ratio 1:1, Dynamic range 77 dB.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚫⚫ Sensitivity
    ⚫⚫⚪⚪ Frame Rate
    ⚫⚫⚪⚪ Resolution

  • Recommended Applications
    ⚫⚫⚫⚫ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚫⚫ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚫⚫⚫⚫ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚫ DF
    ⚫⚫⚫⚪ DIC
    ⚫⚫⚫⚫ Ph
    ⚫⚫⚫⚫ Pol

Product-Information

RIGEL

Your exclusive solution for monochrome fluorescenceapplication.
Display up to 120 frames per second in low light.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the RIGEL delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX RIGEL is the successor of ProgRes 1.4 MPix CCD monochrome cameras, like MFcool.

Benefits

  • High image quality: With Pixel size 5.86 x 5.86 µm, Dynamic range 73 dB, Cooling.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free GRYPHAX® microscope camera software,1/1.2" Sony back-illuminated sensor, 120 fps at Full HD, Global shutter.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚫⚪ Sensitivity
    ⚫⚫⚫⚫ Frame Rate
    ⚫⚪⚪⚪ Resolution

  • Recommended Applications
    ⚫⚫⚪⚪ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚪⚪ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚫⚫⚫⚫ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚫ DF
    ⚫⚫⚫⚪ DIC
    ⚫⚫⚫⚫ Ph
    ⚫⚫⚫⚫ Pol

製品情報

WEGA - Full HD solution | Monochrome

Your advanced solution for monochrome fluorescence application.
Display up to 30 frames per second in low light.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the WEGA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX WEGA is the successor of all ProgRes 1.4 MPix CCD monochrome cameras, like MF.

Benefits

  • High image quality: With Pixel size 5.86 x 5.86 µm, Dynamic range 69 dB.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free GRYPHAX® microscope camera software,1/1.2" Sony back-illuminated sensor, Global shutter.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚫⚪ Sensitivity
    ⚫⚫⚫⚪ Frame Rate
    ⚫⚪⚪⚪ Resolution

  • Recommended Applications
    ⚫⚫⚪⚪ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚪⚪ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚫⚫⚫⚪ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚪ DF
    ⚫⚫⚪⚪ DIC
    ⚫⚫⚫⚪ Ph
    ⚫⚫⚫⚫ Pol

Product-Information

BETRIA - Cost efficient | Monochrome

Your superior education solution for fluorescence application.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the BETRIA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

Benefits

  • High image quality: With Aspect ratio 4:3, Dynamic range 65 dB.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free GRYPHAX® microscope camera software.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚪⚪⚪ Sensor Size
    ⚫⚫⚪⚪ Sensitivity
    ⚫⚫⚪⚪ Frame Rate
    ⚫⚫⚪⚪ Resolution

  • Recommended Applications
    ⚪⚪⚪⚪ Life & Medical Science
    ⚫⚫⚪⚪ Education Life & Medical Science
    ⚪⚪⚪⚪ Material & Manufacturing
    ⚫⚫⚪⚪ Education Material & Manufacturing
    ⚪⚪⚪⚪ Fluorescence
    ⚫⚫⚫⚫ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚪ DF
    ⚫⚪⚪⚪ DIC
    ⚫⚫⚫⚪ Ph
    ⚫⚫⚫⚪ Pol

Product-Information

JENOPTIK GRYPHAX® - Software, tutorial, documentation & application

Software benefits & Features

Remarkable benefits of JENOPTIK GRYPHAX® at a glance

What makes your daily work efficient? Time saving and ease of use workflows with premium quality products made in Germany.

JENOPTIK GRYPHAX® software is workflow optimized ease to use and offers the relevant microscopy features. For those who want to enjoy flexibility, and more functionality drivers like TWAIN, DirectX®, open source microscopy software like µmanager and others are available.

  • Ease of use
    - Automatic, fast exposure control
    - Live-image optimized: ocular view - adapt color impressions from ocular to the images
    - Image comparison (side by side)
    - Video recording

  • High image quality
    - Jenoptik color interpolation based on real measured color
    - Measured data based on EMVA 1288 guidelines
    - Real time image enhancements @ live

  • Stability
    - Device configuration - to define multiple microscope settings
    - User profile for excellent, reproducible image results
    - Software and updates free of charge
    - Each release is certified tested

  • Versatility
    - Research life with fluorescence tool
    - Examine elements with panorama & z-stacking tool
    - Evaluate quality with measurement tool
    - Reveal truths with true color know-how

JENOPTIK GRYPHAX® software features

ソフトウエアのダウンロード

JENOPTIK GRYPHAX® ソフトウエアパッケージは、顕微鏡カメラに含まれています。
ご登録いただいたユーザーの方は、最新バージョンのソフトウエアをダウンロードできます。またアップデートも無料です。

Quick start & General instruction

What makes your daily work efficient?
Time saving and ease of use workflows with premium quality products made in Germany.

The guideline for your quick start with your JENOPTIK GRYPHAX® microscope camera below.

Timesaving!

製品情報

JENOPTIK GRYPHAX® cameras are predestined for your application in

  • Life & medical science
    - Pathology
    - Cell biology
    - Oncology
    - Neuroscience
    - Entomology
    - Plant Biology
    - Dentistry
    - Fluorescence
    - Cell culture
    - Ophthalmology
    - and more…

  • Material science
    - Geology & environmental science
    - Sample preparation
    - Art conservation and natural resource science
    - and more…

  • Industry & manufacturing
    - Medical device production
    - Automotive & transportation
    - Quality control
    - Metals & machine engineering
    - Watch making industry
    - Semiconductor & microelectronics
    - Manufacturing
    - and more…

  • Education
    - Life science
    - Earth science
    - Material science Forensic

They capture confident and reliable your daily work with real measured colors.

Confident!

explore the micro universe™ (ミクロの宇宙探訪)

利点

  • 高画質:専門業務向けの Jenoptik(イエナオプティック)の画像品質は、トゥルー・カラーのノウハウに基づき、理想的な色の再現が可能です。製品では、スペクトル測定センサーを使用しています。
  • 柔軟な互換性と多用途性:WINMACLinux と互換性をもつクロスプラットフォームで、WINMACLinux のすべてのプラットフォームで同一のGUIを利用できます。あらゆるブランドの顕微鏡に対応し、無料SDKおよびサードパーティ・ソフトウエアサポートにも対応しています
  • 使いやすさ:ユーザーフレンドリーな使いやすさ を追求した直観的な顕微鏡カメラ・ソフトウエアと最適化されたワークフローを提供。ライブ映像の最適化を行い、すべての機能を常にリアルタイムでお使いい ただけます。センサーは、顕微鏡検査に好適で、時間の節約につながり、設置も手軽です。
  • 安定性:USB 3.0カメラ インターフェースは安全な投資です: 長期にわたり高い耐久性を誇る信頼のハードウエア、長期ソフトウエアサポートとOS互換性をご提供します

アプリケーション分野

  • 生命科学:医学、病理学、血液学、細胞学、遺伝学、生物学および化学
  • 品質管理:粒子解析、溶接シーム試験および製造工程管理
  • 材料科学:鉱物学および金属組織学構造、量的・質的サンプル分析およびドキュメンテーション向けとして
  • 法医学:証拠精査、文書検査および法医学



ご不明な点はございませんか?お気軽にお問い合わせください。

Sales Jenoptik Japan

+81 045 670-9140

+81 045 670-9141

Stefan Seidlein

Stefan Seidlein

Product Manager

個人情報

Salutation

お問い合わせ

* = 必須欄です。ご記入ください。
